INTRODUCTION
Series: RTZS120 series
Classification Asphalt Mixing Plant
Contact information: RTZK2003@163.com
PRODUCT
Product Parameters
| Parameter | Unit | RT120ZS 2 particle sizes | RT120ZS 3 particle sizes |
| Rated productivity | t/h | 120 | 120 |
| Feeding particle size | mm | ＜80 | ＜80 |
| Overall power | kW | 55 | 62 |
| Residue | % | ＜10 | ＜10 |
| Cold hopper volume | ㎥ | 12 | 12 |
| Screen size | m | 4.8x1.8 | 4.8x1.8 |
| Crushing capacity of toothedroller crusher | t/h | 40 | 40 |
| Particle size of mixed material | mm | 0-13,13-26 | 0-8,8-16,16-26 |
Product Details
| Product overview |
| Due to the fact that most of RAP have not been layered, classified, or have been stacked for a long time, RAP will form large blocks after bonding. Therefore, it is necessary to perform preliminary screening and crushing treatment on RAP to ensure their grading and reduce variability, RTZS120 adopts a circular vibrating screen structure and a roller flexible crushing method, which can divide materials into two or three grades. |
| Product characteristics |
| 1 Roller type flexible crushing mode, preventing secondary crushing of recycled materials and ensure the original grading to the greatest extent. |
| 2 Screening adopts a circular vibrating screen structure, and the circular trajectory screening is suitable for recycled materials with viscosity. |
| INTRODUCTION TO FUNCTIONAL MODULES OF SCREENING & CRUSHING EQUIPMENT | |

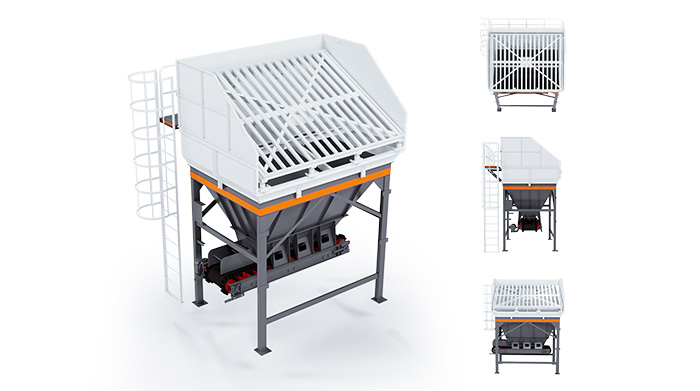

| Cold feeding system Single silo volume is 12m3, inner vibrating type, big vibration amplitude, ensuring a smooth material discharge. |
 |

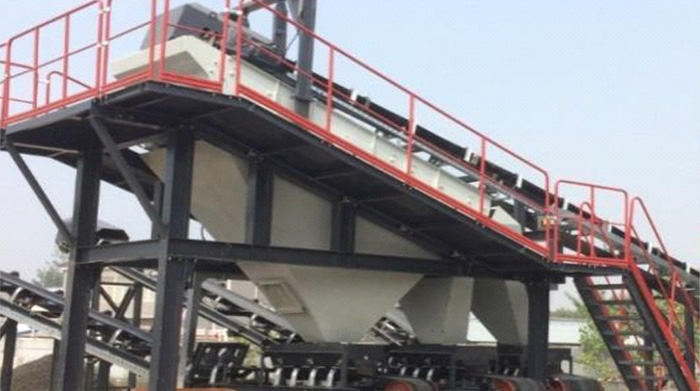

| Screening system Circular vibrating screen, double bearing eccentric block type circular vibrating screen, screen box for circular trajectory screening action, especially suitable for recycled materials with viscosity. |
 |

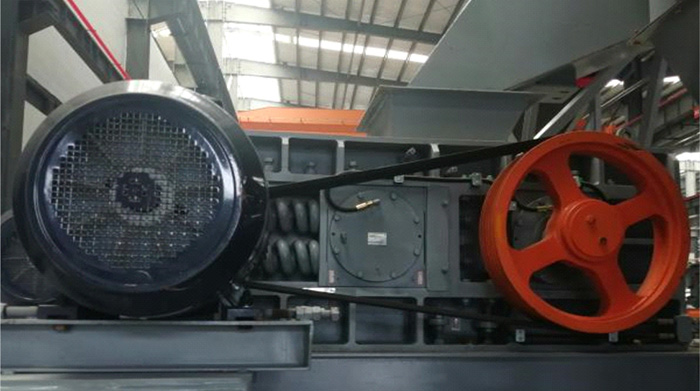

| Crushing system Roll crusher The mixer crushing teeth of the roller crusher are arranged in a cross pattern, spring tension device is equipped to one of the crushing roller to adjust the material productivity & granularity after crushing. Tow sets are driven independently with sufficient power. |
 |
